VI.9.1/14 Pompeii. Casa del Duca di Aumale or Casa d’Iside ed Io

or Hospitium Gabinianus or of Gabinius.

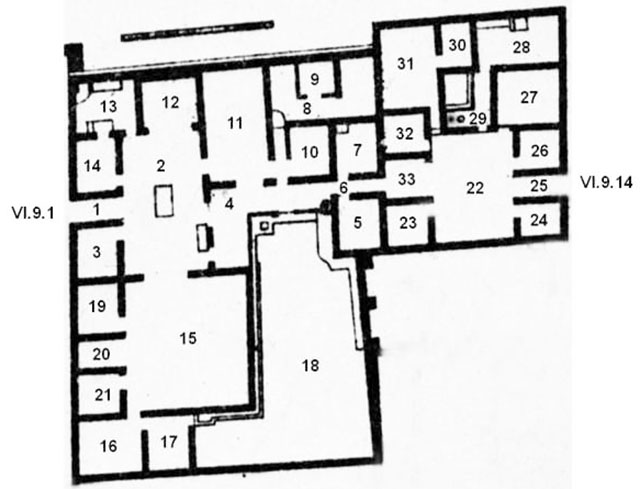

Combined Room Plan

VI.9.1/14 Pompeii. Casa del Duca di Aumale or Casa d’Iside ed Io

or Hospitium Gabinianus or of Gabinius.
Combined Room Plan

This plan is to help you accurately locate the rooms shown in the photographs of these houses.

The plan shows the entrances at VI.9.1 and VI.9.14.

Rooms 1 to 21 can be found on the pages for VI.9.1. Rooms 22 to 33 can be found on the pages for VI.9.14.

Key:

VI.9.1

1:  Entrances fauces at VI.9.1

2:  Atrium and impluvium

3:  Cubiculum

4:  Corridor and walkway

5:  Cubiculum

6:  Fauces between cubiculum 5 and cubiculum 6

7:  Cubiculum

8:  Small garden

9:  Room on west side of small garden

10: Room on north side of oecus 11

11: Large oecus

12: Oecus

13: Kitchen, latrine and stairs

14: Cella penaria

15: Triclinium or spacious room

16: Room in south east corner of triclinium

17: Room with entrance from room 16

18: Garden

19: Room on south side of triclinium

20: Room on south side of triclinium

21: Room on south side of triclinium



VI.9.14

22: Atrium of VI.9.14

23: Cubiculum

24: Cubiculum

25: Entrance fauces at VI.9.14

26: Cubiculum

27: Oecus

28: Kitchen in north-west corner which had a lararium painting

29: Light yard

30: Room on north side of oecus 31

31: Oecus

32: Cubiculum

33: Tablinum



To provide a link for your research the room numbers shown are those used in Pitture e pavimenti di Pompei (PPP)

See Pitture e pavimenti di Pompei / a cura di Irene Bragantini ... et al, Part 2, Regioni 5, 6. Roma: Ministero per i beni culturali e ambientali, ICCD, 1983.

The descriptions are derived from those used in

Bullettino dell' Instituto di Corrispondenza Archeologica, 1831 p. 18,

Bullettino Archeologico Napolitano 1, 1843, p. 68ff,

J. E. Packer, in Cronache Pompeiana IV, 1978, p. 24ff.

Please be aware that the room numbers may differ from any other plans or records both published and unpublished.
